Sockeye salmon (Oncorhynchus nerka)

  • Freshwater
  • Marine

WAVE Series - 69kHz

  • Product Type Icon Tag

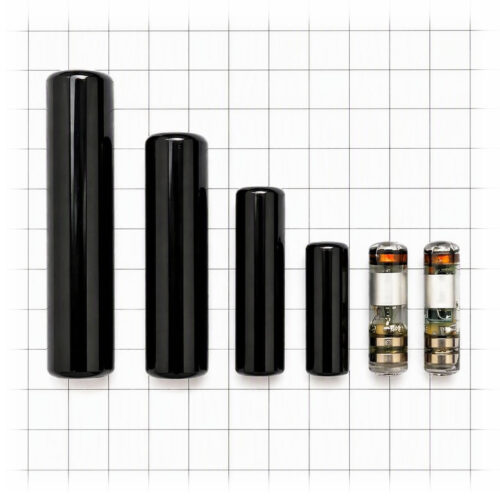

WAVE Series - 69kHz - Product Image About this Image

About this image:

1 cm grid size

WAVE Series 69kHz PPM and BPSK Acoustic Transmitters

Lotek is proud to offer acoustic transmitters which utilize the Open Protocols OPi and OPdi. OPi uses pulse-position modulation, while OPdi leverages advanced digital binary phase-shift keying (BPSK) technology to ensure robust signal transmission. Each OPdi transmission includes an ID and checksum delivered in less than one millisecond, significantly reducing the risk of misidentification and interference from code collisions.
With OPi and OPdi IDs managed by VLIZ, deployment is simplified and duplication concerns are eliminated, giving researchers and operators the confidence to integrate Lotek Wave tags across platforms with ease.

Options

  • Low, Medium, or High output power
  • Self-termination
  • Basic and advanced on/off scheduling

  • Product Application Examples

    Migration and spawning activity of freshwater and marine species.

  • Product Specifications

    Model Physical specifications [1] Estimated life (days) [2]
      Weight Weight Size R64K [3] OPi [3] OPdi-69a [4]
      in air (g) in water (g) (ØxL) (mm) 60s interval 60s interval 2s interval 5s interval
    W69-6-24 TBA TBA 6.5 x 24 52 42 23 55
    W69-7-24 TBA TBA 7.7 x 24 66 54 29 69
    W69-9-25 3.9 1.9 9.5 x 25 96 78 42 101
    W69-9-28 4.7 2.5 9.5 x 28 154 126 69 163
    W69-9-34 5.8 3.3 9.5 x 34 125 101 55 131
    W69-9-40 7.0 4.0 9.5 x 40 330 269 148 347
    W69-13-46 10.0 4.8 13.3 x 46 605 492 269 636
    W69-13-63 16.0 8.2 13.3 x 63 921 752 414 968
    W69-16-48 20.4 TBA 16.1 x 48 1323 1086 604 1389
    W69-16-56 23.2 TBA 16.1 x 56 1750 1444 812 1834
    W69-16-72 29.2 TBA 16.1 x 72 2622 2188 1259 2741

    1. Size/weight specification tolerance typically ±5%.
    2. Estimated Life at medium output power.
    3. Modulation Type: Pulse Position Modulation (PPM). Best suited for coarse scale temporal data collection.
    4. Modulation Type: Binary Phase Shift Keying (BPSK). Suitable for both coarse and finescale temporal data collection.

    Features and specifications subject to change without notice.



    Technical specifications:
    Transmitter frequency: 69 kHz ± 0.05%
    Operating temperature range: – 6˚C to 40˚C
