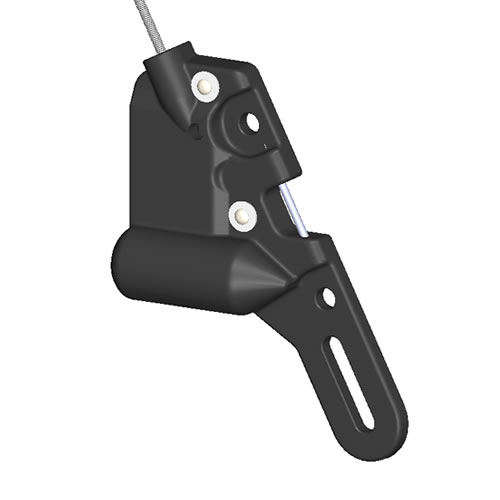

KiwiSat^® K4F Series

Ideal for shark species that frequent the surface such that their dorsal fin is exposed to the air. Size is small enough to be applicable to juveniles.

1. Assuming the density of seawater is 1024 kg/m^3.
2. Reflect the maximum dimensions but the volume is significantly less.
3. Estimated life using 200 transmissions per day.
4. Max Depth for sensor model: 300m.

Features and specifications subject to change without notice.

Transmitter Specifications
Argos transmit power: <200mW
Operating temperature range: – 10˚C to 50˚C

Standard Sensors
Wet/dry sensor

Optional Sensors Specifications
Temperature sensor range: -40˚C to 60˚C
Temperature sensor accuracy: ±0.2˚C
Temperature sensor resolution: better than 0.05˚C
Depth sensor range: 300m
Depth sensor accuracy: ±1% of Full Scale
Depth sensor resolution: ~0.1% of Full Scale

Here you’ll find product resources including software applications, manuals, quick-start guides and spec sheets. For any questions, please contact us.
