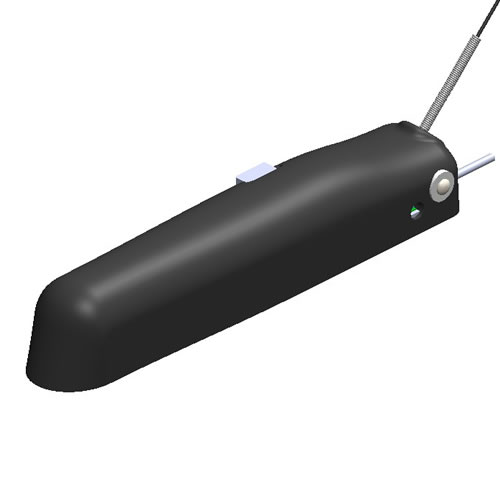

F6G 173A
About this image:
F6F 176D
About this image:
F6G 276E
About this image:
F6G 276F
About this image:

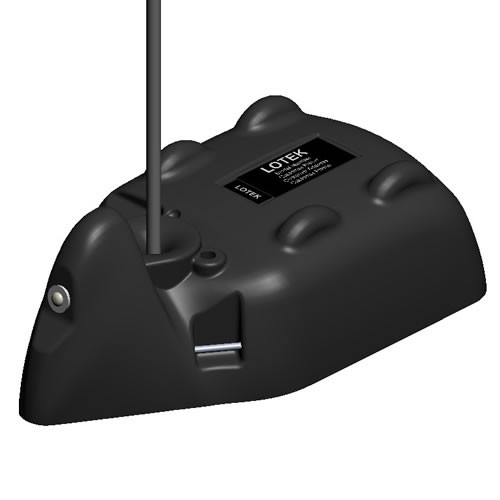

F6G 376B
FastGPS is fast acquisition GPS technology designed for marine animals which only surface briefly. Raw locations and basic dive data are then relayed back to the researcher via the Argos satellite system.
Unique FastGPS technology enables a snapshot of GPS signals to be taken in a fraction of a second compared to conventional GPS which can take tens of seconds. FastGPS raw data is automatically post-processed and can be viewed and downloaded via a secure web portal.
Ideal packaging for sharks, pinnipeds and marine turtles in situations where there is little or no chance of recapturing to recover the data.
| Model | Weight (g) | Estimated Life [2] (days) | Size (LxWxH) (mm) |
Depth (m) |
DIVE Sensor |
Enhanced Memory |
Heavy Duty |
||
| in air | in water [1] | Standard | DIVE | ||||||
|---|---|---|---|---|---|---|---|---|---|
| F6G 173A | 51 | <10.4 | 111 | 152 | 105 x 21 x 18 | 200 | Yes | Yes | No |
| F6F 176D | 65 | -1.6 | 157 | 216 | 96 x 19 x 80 | 1000 | No | No | No |
| F6G 276E | 140 | 47.4 | 308 | 419 | 100 x 44 x 31 | 1000 | Yes | No | No |
| F6G 276F | 148 | 46.6 | 308 | 419 | 101 x 44 x 32 | 2000 | Yes | No | Yes |
| F6G 376B | 240 | 93.6 | 463 | 629 | 115 x 64 x 44 | 2000 | Yes | No | Yes |
| F6G 676B | 520 | 112.5 | 926 | 1259 | 164 x 75 x 62 | 2000 | Yes | No | Yes |
1. Assuming the density of seawater is 1024 kg/m^3
2. Estimated life calculated with hourly FastGPS locations and a daily limit of 200 Argos transmissions.
Technical specifications:
Argos transmit power: 500mW
Operating temperature range: – 20˚C to 50˚C
Standard sensors:
Wet/dry sensor
Temperature sensor range: -40˚C to 60˚C
Temperature sensor accuracy: ±0.2˚C
Temperature sensor resolution: better than 0.05˚C
DIVE sensors:
Calibrated sensor range: -5˚C to 40˚C
Depth sensor ranges: 200m, 500m, 2000m
Depth sensor accuracy: ±1% of Full Scale
Depth sensor resolution: ~0.025% of Full Scale
