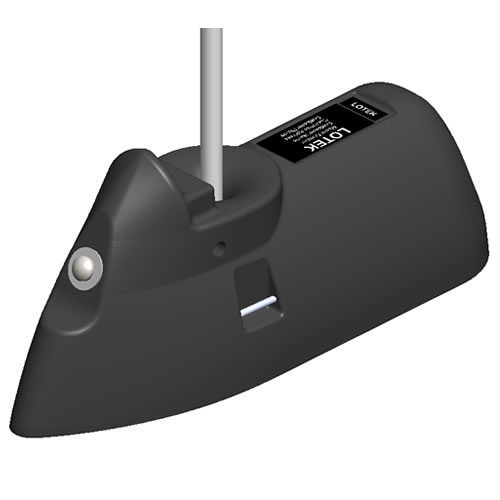

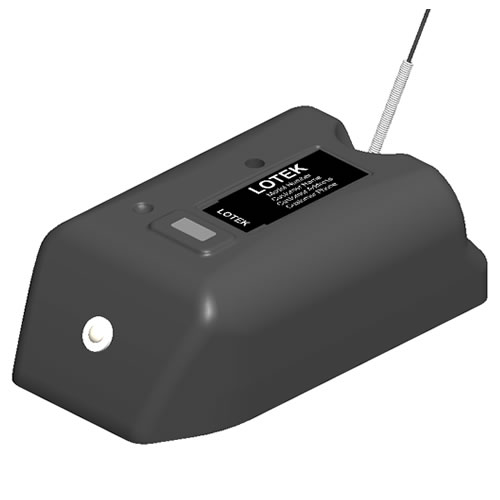

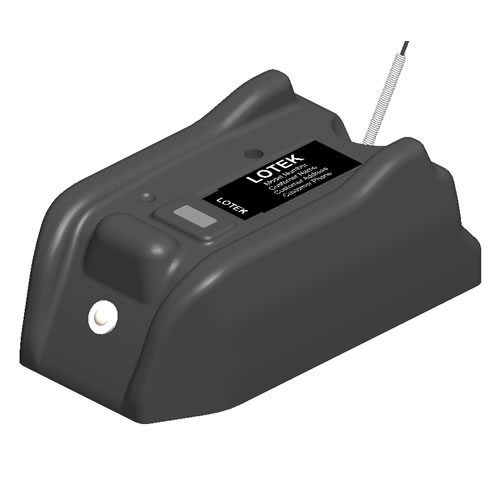

KiwiSat® Glue On Series

  • Product Type Icon Tag

The KiwiSat® 202 series series are marine Argos transmitters for glue on attachment

The KiwiSat® Glue-On series is available in models weighing from as little as 34g and are designed to be compact with minimal frontal area to minimise drag. Despite their small size, these transmitters are designed to withstand the harsh marine environment.


Options

  • Wet/dry sensor, flexible scheduling and haul-out mode
  • DIVE data includes max. depth, time and TAD (Time At Depth) index. (excludng K2G 173A)
  • Product Specifications

    Model Weight
    (g)
    Size (LxWxH)
    (mm)
    Max depth
    (m)
    Heavy duty Life [1]
    (Std / DIVE sensors)
    K2G 173A 34 60 x 27 x 17 500 No 305
    K2G 158C 40 56 x 26 x 21 500 No 204 / 198
    K2G 276A 95 78 x 43 x 27 2000 No 865 / 843
    K2G 276B TBA 82 x 44 x 33 2000 Yes TBA
    K2G 376E 240 136 x 44 x 59 2000 Yes 1298 / 1264
    K2G 576E 360 138 x 78 x 50 2000 Yes 2163 / 2107

    1. Estimated life based on 200 transmissions per day.
    Features and specifications subject to change without notice


    Technical Specifications:
    Argos transmit power: 500mW
    Operating temperature range: – 20˚C to 50˚C

    Standard Sensors:
    Wet/dry sensor
    Temperature sensor range: -50˚C to 75˚C
    Temperature sensor accuracy: +/- 0.5˚C
    Temperature sensor resolution: 0.25˚C

    DIVE Sensors:
    Calibrated sensor range: -5˚C to 40˚C
    Depth sensor ranges: 200m, 500m, 2000m
    Depth sensor accuracy: ±1% of Full Scale
    Depth sensor resolution: ~0.025% of Full Scale
    Temperature sensor range: -40˚C to 60˚C
    Temperature sensor accuracy: ±0.2˚C
    Temperature sensor resolution: better than 0.05˚C
